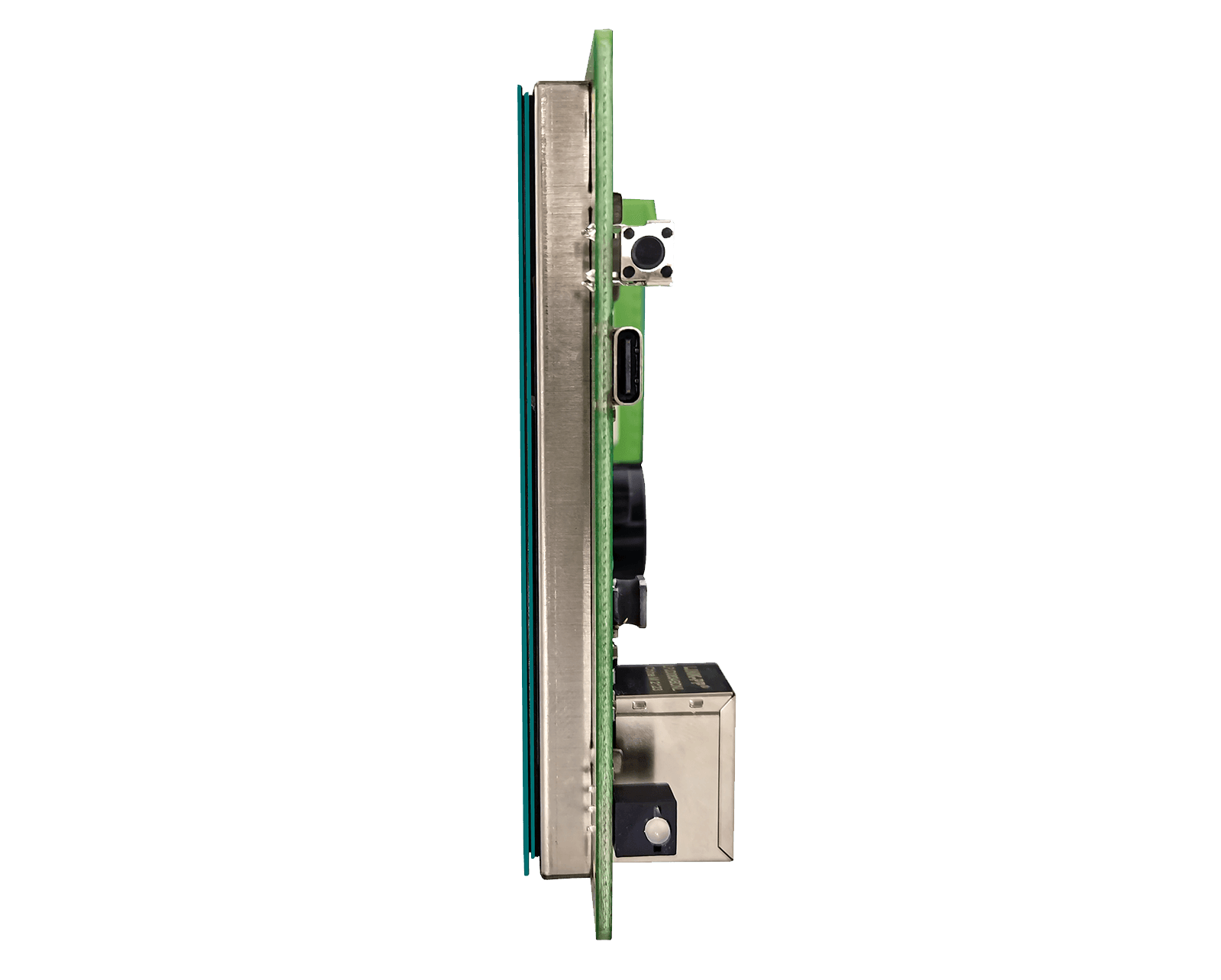

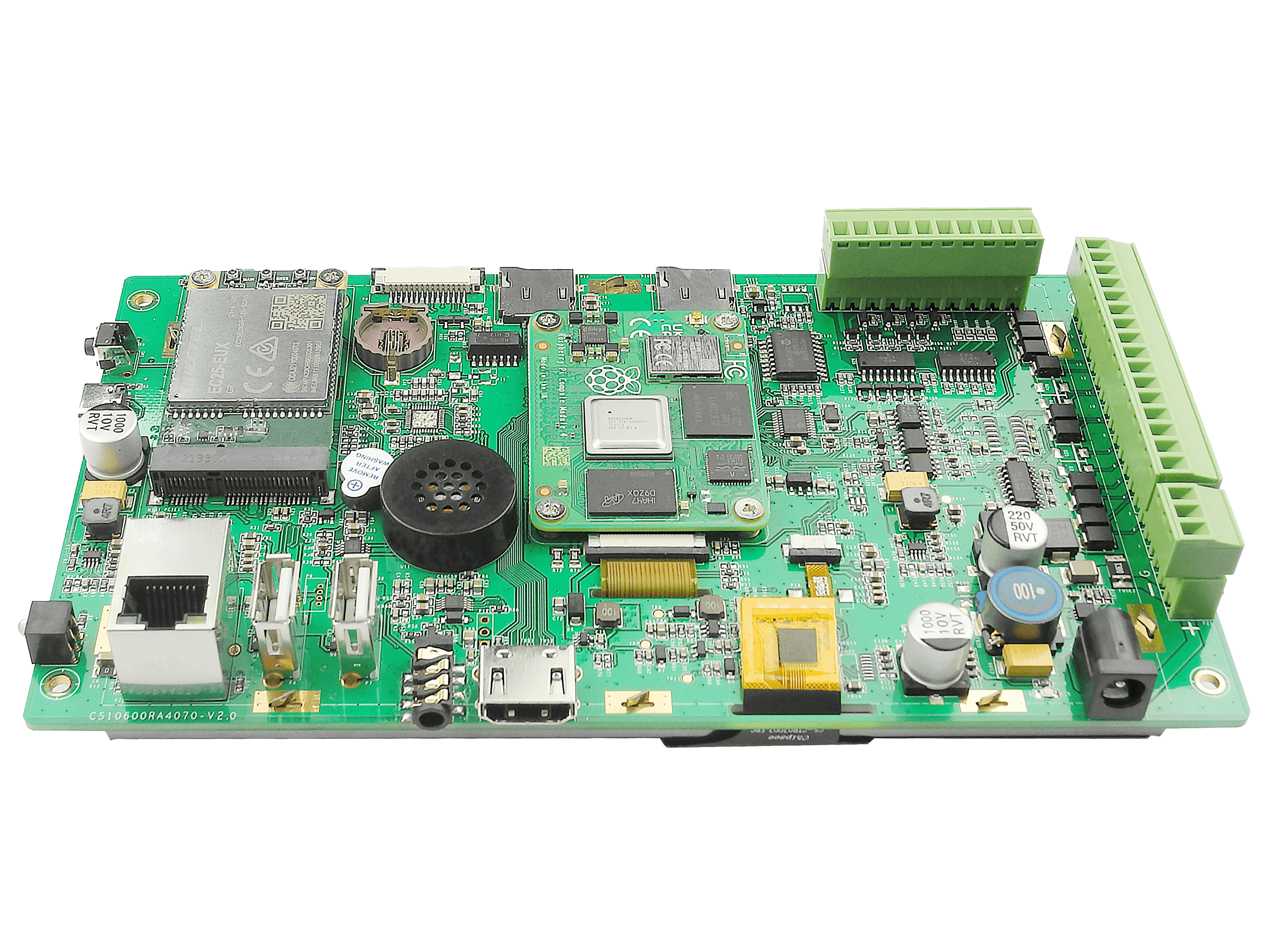

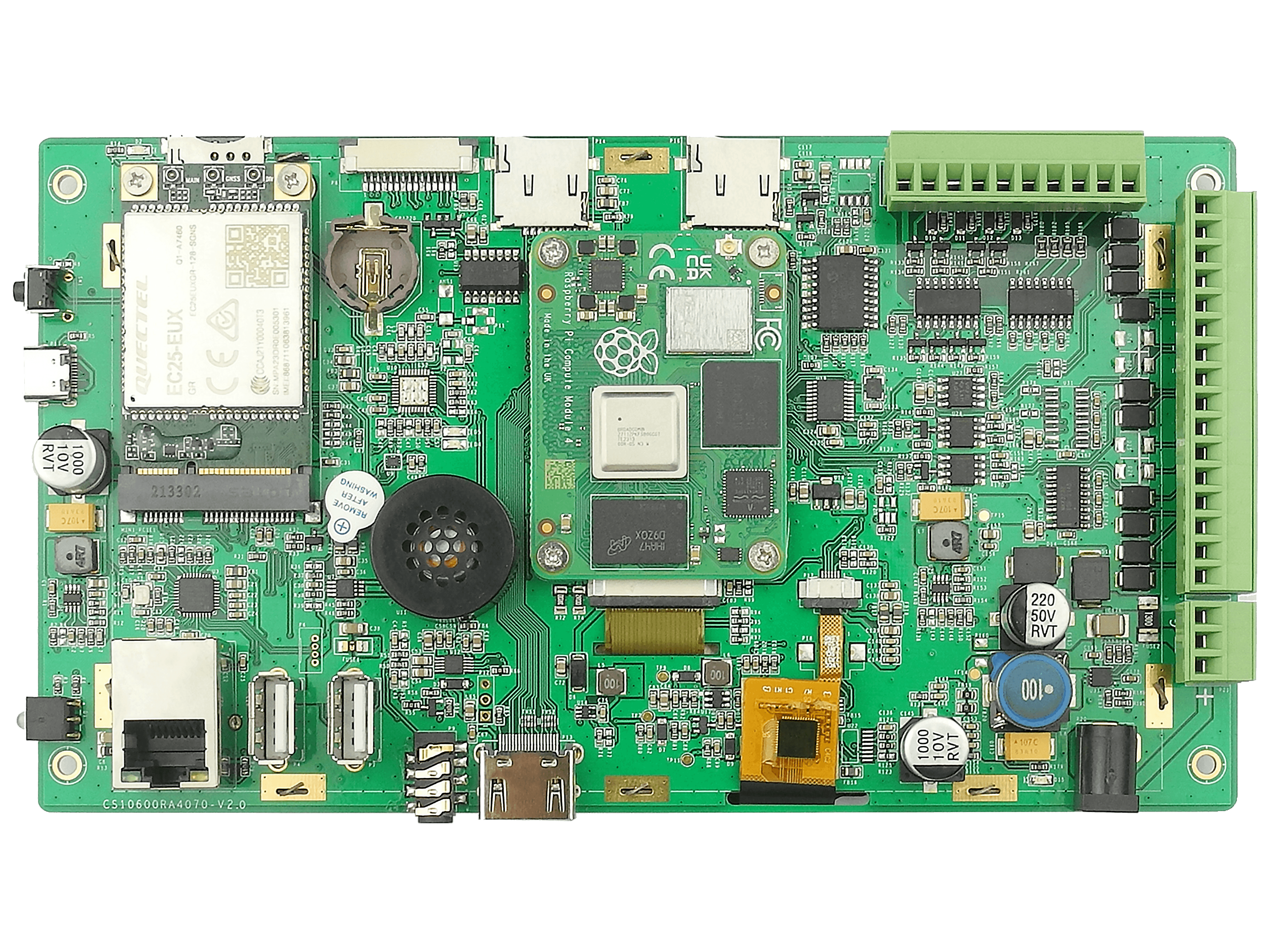

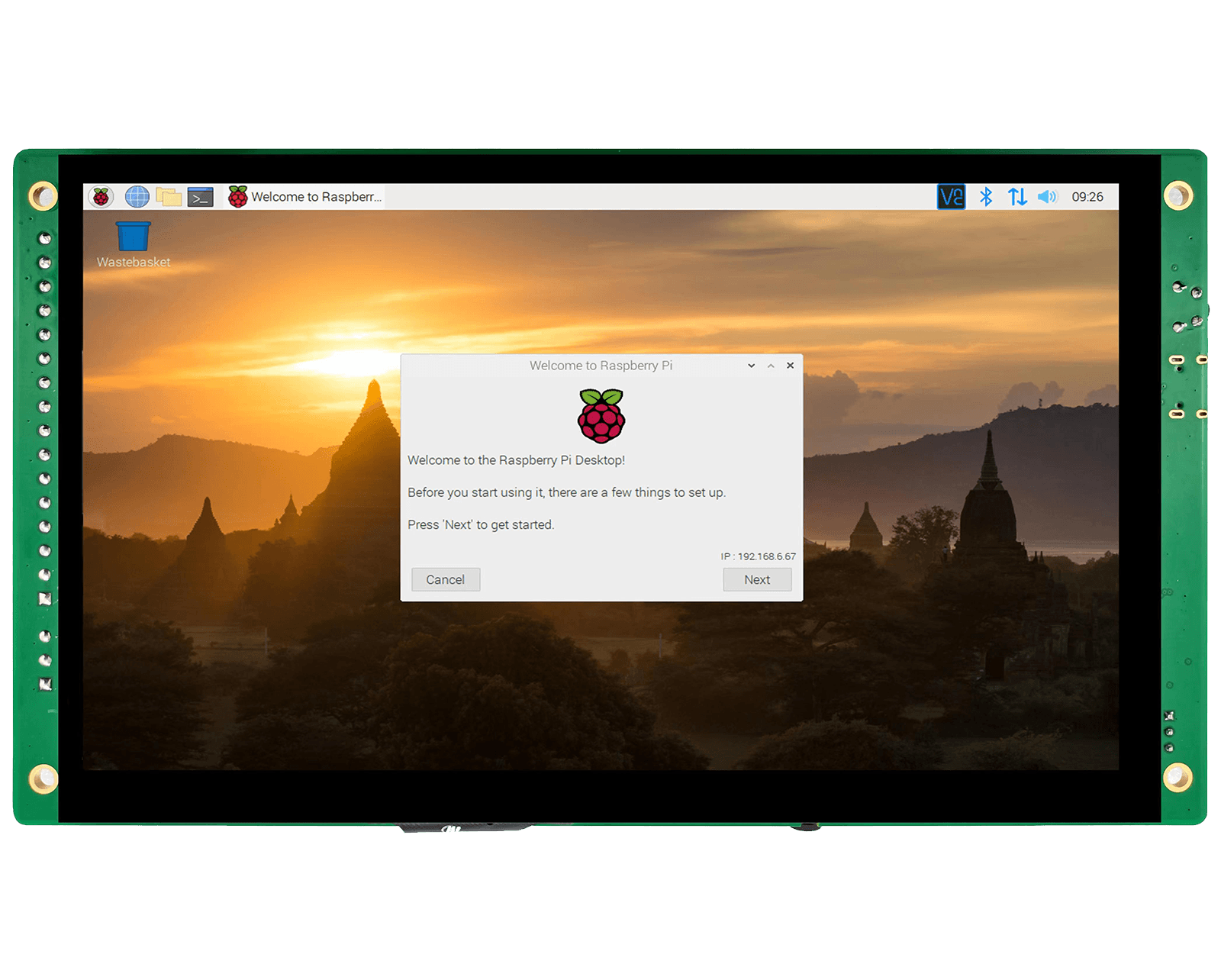

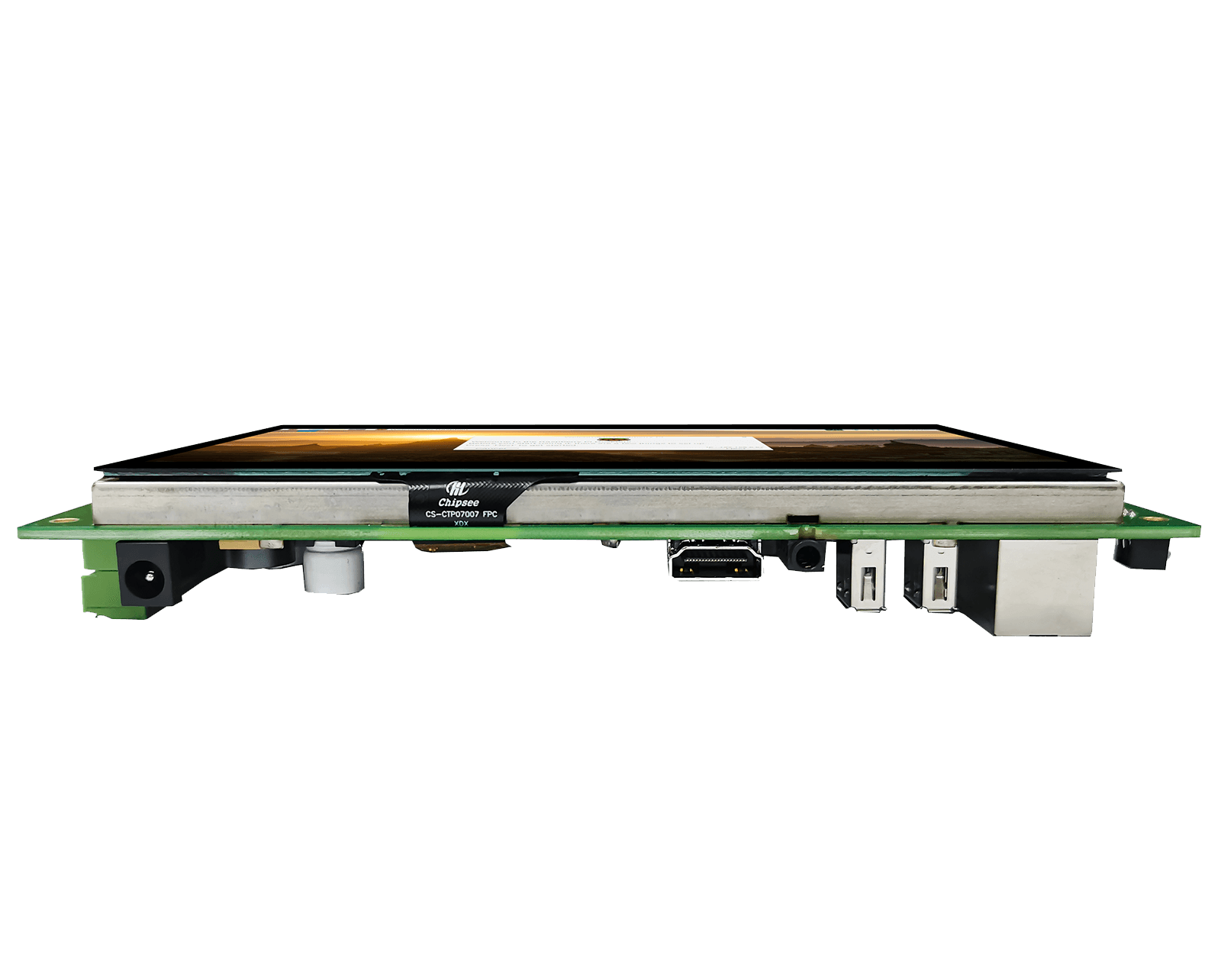

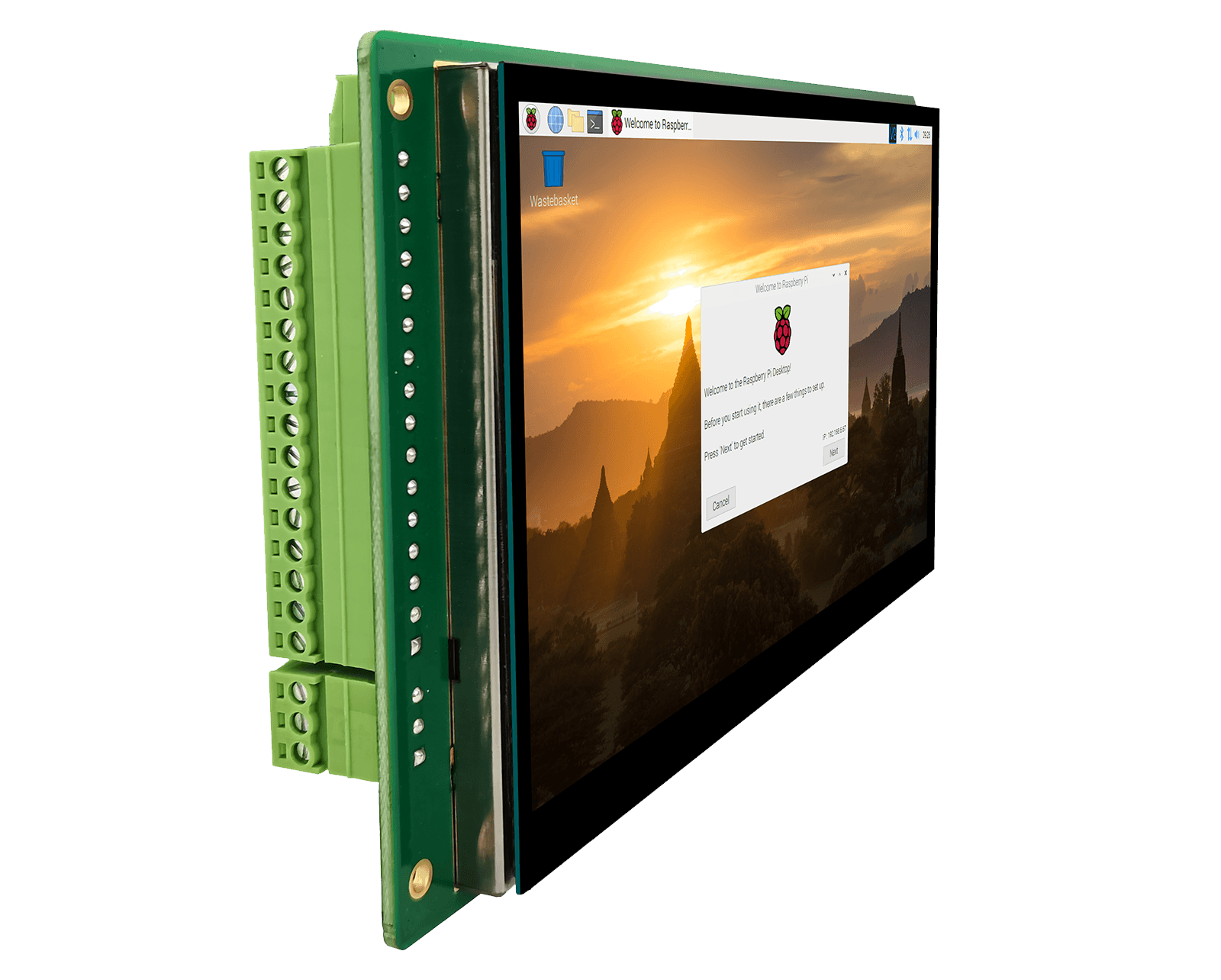

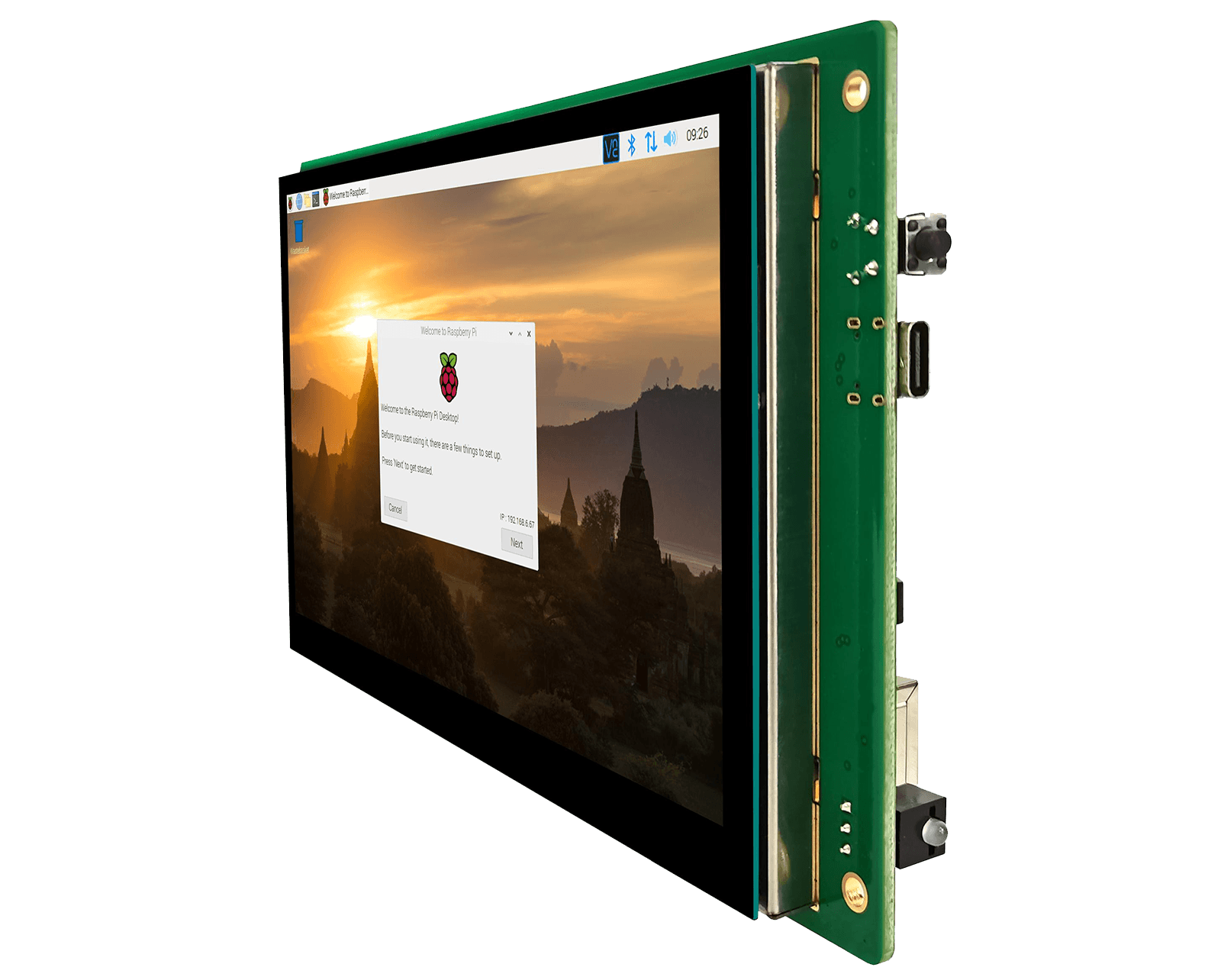

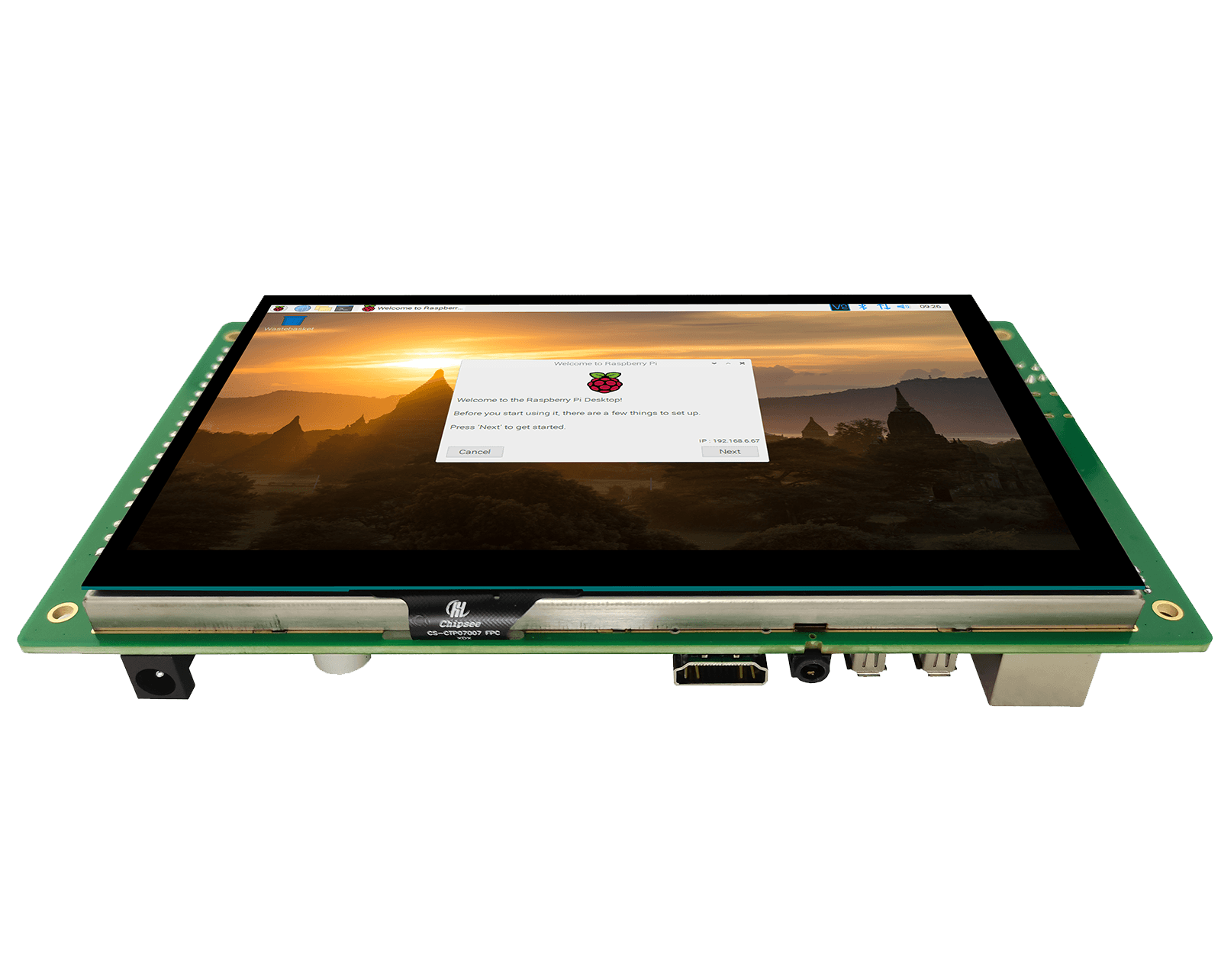

EPC-CM4-070

Спецификации

SKU

CS10600RA4070E

Нетно тегло

400 g

Форм-фактор

Embedded

Процесор

ARM: Raspberry Pi CM4

Диагонал на екрана

7.0″

Разделителна способност

1024*600

Яркост

500 NIT

Сензорен екран

Capacitive

Flash памет

16GB

Външна памет

2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion.

Wi-Fi / Bluetooth

Depends on the Compute Module 4 selected.

Zigbee

Optional

4G

Optional

USB

1x miniUSB OTG; 2x USB 2.0 HOST

CAN

1 x CAN

RS232

2 x RS232 by default, up to 4 x RS232

RS485

2 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.

HDMI

Yes

GPIO

Opto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed)

Ethernet

1x RJ45, 1 Gbps

Камера

There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High Accuracy RTC with a Farad Capacitor

Операционна система

Raspberry Pi OS

Входно захранване

9-36V DC

Консумация

5W

Ток при 12 V

420 mA max

Работна температура

0°C to +60°C

Начин на монтаж

Embedded Mounting

Модул Raspberry Pi CM4

CM4 not included; CM4002000 ($57): 2GB DDR, no WiFi, or eMMC; CM4002016 ($79): No WiFi/BT+2GB DDR+16GB eMMC; CM4002032 ($100): No WiFi/BT+2GB DDR+32GB eMMC; CM4102000 ($57): WIFI/BT+2GB DDR no eMMC; CM4102016 ($100): WiFi+2GB DDR+16GB eMMC; CM4102032 ($105): WIFI+2GB DDR+32GB eMMC; CM4104016 ($137): WIFI+4GB DDR+16GB eMMC; CM4104032 ($142): WIFI+4GB DDR+32GB eMMC; CM4108032 ($216): WIFI+8GB DDR+32GB eMMC
