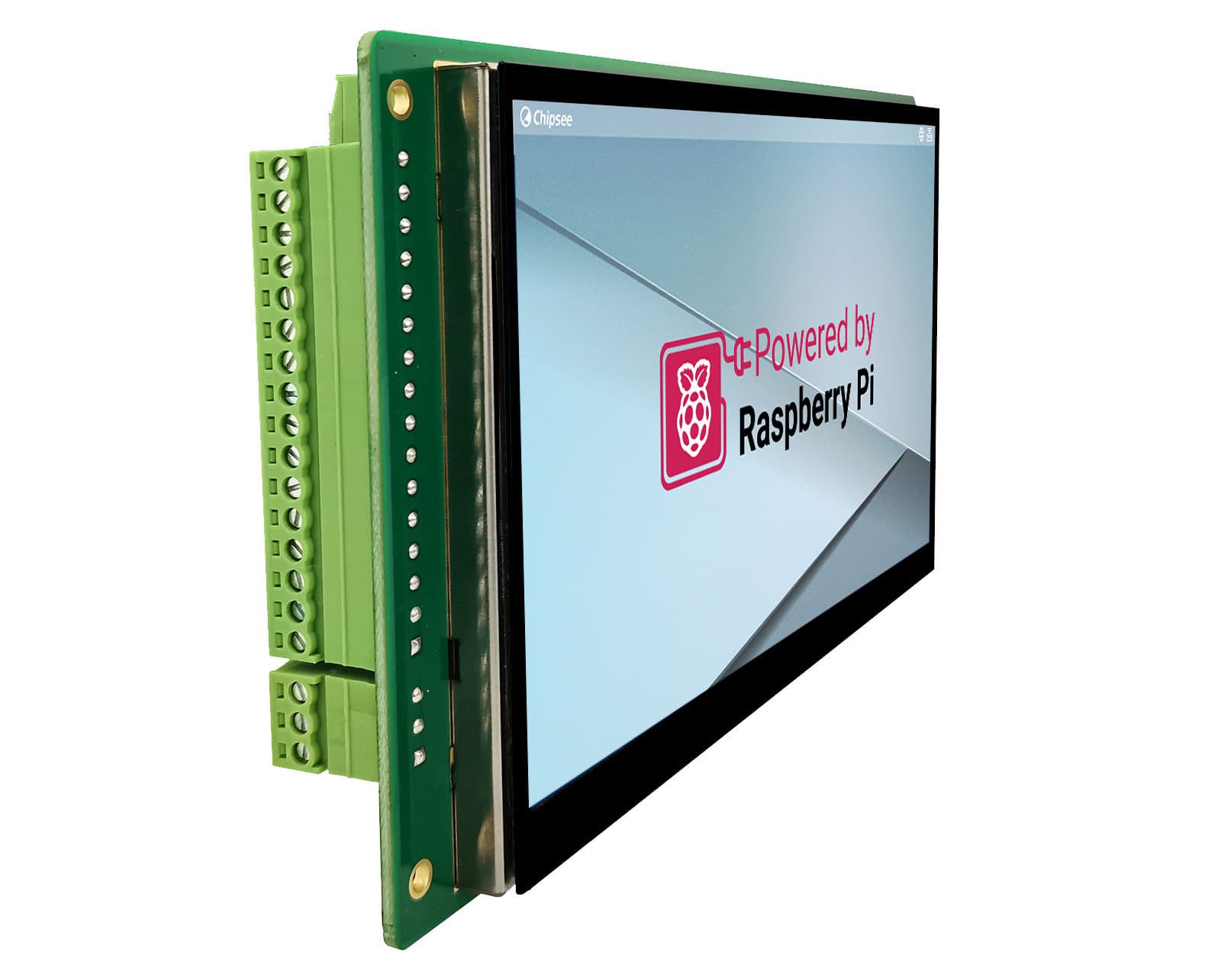

7.0" Панелни компютри и HMI — ARM: Raspberry Pi CM5, Based on CM5, Raspberry Pi OS, 1024 × 600
Спецификации
- SKU
- CS10600RA5070E
- Форм-фактор
- Embedded
- Нетно тегло
- 400 g
- Процесор
- ARM: Raspberry Pi CM5
- Тактова честота на процесора
- Quad(4) Core Cortex-A76 at 2.4GHz
- PCIe
- PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242 socket (Optional)
- Оперативна памет
- Based on CM5
- Вградена памет (eMMC)
- Based on CM5
- Постоянна памет
- Supports 1 x TF Card
- Диагонал на екрана
- 7.0″
- Разделителна способност
- 1024*600
- Яркост
- 500 NIT
- Сензорен екран
- Capacitive
- USB
- 2 x USB 3.0 Host, 1 x USB OTG
- CAN
- 1 x CAN
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- Yes
- RS232
- 2 x RS232 by default, up to 4 x RS232
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x Giga LAN
- I2C
- Not supported.
- Wi-Fi / Bluetooth
- Depends on CM5
- 4G
- Optional
- Аудио
- 3.5mm Audio Out Connector; Internal 2W Speaker
- Зумер
- Onboard, driven by GPIO
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off
- Входно захранване
- 9-30V DC
- Консумация
- 11.4W Max; 6W
- Работна температура
- -10°C to +60°C
- Ток при 12 V
- 950mA
- Камера
- Optional
- Операционна система
- Raspberry Pi OS
- Начин на монтаж
- Embedded
- Модул Raspberry Pi CM5
- CM5102016 ($113): WiFi+2GB DDR+16GB eMMC; CM5104032 ($156): WiFi+4GB DDR+32GB; CM5108032 ($233): WiFi+8GB DDR+32GB
